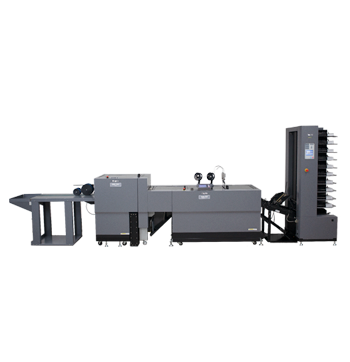

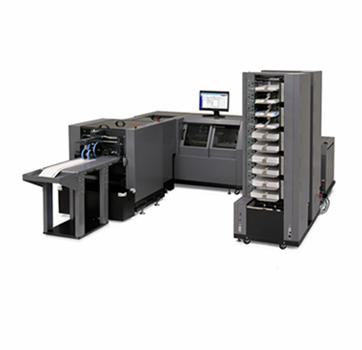

Saddle stitch binding booklet system | DBM-700 System
This machine will be processing the sheet set sent from the upstream and doing "stitching" and " folding" processes. It supports horizontal binding of finished sizes of A5, A4 and B5. As in the options, various binding needs by carrying out "edge trimming", "top and bottom trimming" and "booklet forming".
| Paper size | Processing Capability | Process Speed |
|---|---|---|
| A5 portrait~ A3 portrait |
Up to 50 sheets *Option require |
4,600 set/H *A5 finishing |
| System Name | 700Booklet System (LCD), 700iBooklet System (PCC) | Dimensions (width x depth x height) | Power consumption | |
|---|---|---|---|---|
| Model configuration (Example) | DSC-10/60iL＋LUL-HM＋DBM-700＋DBM-700S＋DBM-700T＋DKTS-200＋DBM-LSW2＋DKT-K KIKCER FOR DKTS-200 | 6,514×1,126×1,972mm | 2,580W | |
| DSC-10/60iL＋LUL-HM＋DBM-700＋DBM-700S＋DBM-700T＋DBM-LSW＋DKT-K | 5,556×844×1,972㎜ | 2,130W | ||
| Paper size (width x length) |
Saddle stitching | Maximum | 230mm x 610mm *Maximum length | Anything with a width x length ratio exceeding 1:3.1 is outside the specifications. |
| 350mm x 508mm *Maximum width | ||||
| Minimum | 120mm x 170mm *minimum length | |||
| 105mm x 297mm *minimum width | ||||
| Minimum (when molded) | 120mm x 210mm | |||
| Side stitching | Maximum | 350㎜×364㎜ | ||
| Minimum | 210㎜×170㎜ | |||
| Corner stitching | Maximum | 350㎜×364㎜ | ||
| Minimum | 185㎜×170㎜ | |||
| Paper quality | High-quality paper | 64.0g/㎡～127.9g/㎡ ※Contents 64.0g/㎡～300.0g/㎡ ※Cover |
Depending on the paper size, paper processing, and working environment, processing may not be possible even if it is within the specifications. An air kit may be required depending on the equipment and functions used. |
|
| Coated paper/Art paper | 84.9g/㎡～157.0g/㎡※Contents 84.9g/㎡～300.0g/㎡*Cover |
|||
| Paper format | Sheet | |||
| Processing capacity | DBM-700 (Folding capability) | 2 to 30 sheets *Number of sheets | For high-quality paper 81.4g/m2, paper width 200-320mm. | |
| DBM-700+DBM-700T (Small edge cutting capability) |
Cover (2 sheets) + Contents up to 48 sheets *Number of sheets is after folding in half |
When the cover is 300g/m2 and the contents are 81.4g/m2 high-quality paper. *Booklet thickness: 6.0 mm or less. |
||
| DBM-700+DBM-700S＋DBM-700T *When 50SHEETS BOOKLET TRIM KIT is installed (Forming and cutting capacity) |
Cover (2 sheets) + 48 sheets *Number of sheets is after folding in half |
When using high-quality paper at 81.4g/㎡, After folding, the width of 52 to 60 sheets is 200 to 320 mm. 62 sheets or more: width 200-320 mm, length 135-225 mm. *Booklet thickness exceeding 6.0 mm requires booklet molding. |
||
| Cover (2 sheets) + 18 to 48 sheets *Number of sheets is after folding in half |
When using high-quality paper at 64 g/m2, For orders of 100 sheets or more, the paper size after folding will be A5 landscape. *Booklet thickness exceeding 6.0 mm requires booklet molding. |
|||
| Cover (2 sheets) + 18 to 48 sheets *Number of sheets is after folding in half |
Other than those above | |||
| The recommended number of sheets for booklet square spine is 20 or more after folding in half. Less than 20 sheets is outside the specifications. When the DBM-700S and DKTS-200 is connected, cutting of the booklet-formed product by DKTS-200 is outside the specifications. The maximum number of sheets that can be trimmed with top and bottom trimming is 30 or less after, including the cover. |
||||
| Maximum Processing Speed | Square spine No square spine |
A4 size finish | Maximum 4,100 sets/hour | High-quality paper 81.4g/㎡ *Maximum of 10 sheets. |
| A5 Finish | Maximum 4,600 sets/hour | |||
| A5 finished size (when connected to DKTS-200) | Maximum 4,500 sets/hour | |||
| Square spine | A4 size finish | Maximum 1,860 sets/hour | High-quality paper 81.4g/㎡ *The number of sheets after folding should be within 60. |
|
| A5 Finish | Maximum 2,050 sets/hour | |||
| Connectable devices | Paper feeder | DSC-10/60iL, DSF-6000(PCC), DSF-2200 (PCC) | ||

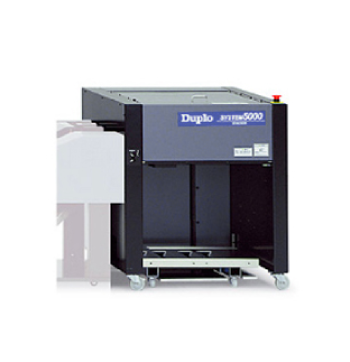

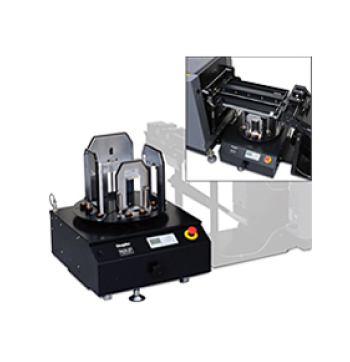

| Stacker | DCR-ST, DCR-BP, DBM-400STR | D-PORT CONVERTER required | ||

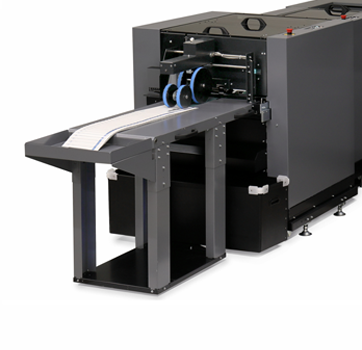

| Down stream | DKTS-200 | |||
| Option | DBM-700 | DBM-SSW, NON-STAPLE SENSOR, AIR KIT FOR DBM-700, HAND FEED KIT, 4 STITCH KIT | ||
| DBM-700T | DBM-SSW, DBM-LSW, DKT-K, 50SHEETS BOOKLET TRIM KIT (50-sheet binding, trimming kit), 75MM TRIM KIT FOR DBM-700T (75mm width trimming kit for DBM-700T) | |||
| DBM-700S | None | |||
| Additional Features | DBM-700 | NON-STAPLE SENSOR, 2x2 Stitch, Long cover processing | ||
| DBM-700T | Additional folding function | |||
| DBM-700S | Booklet stop position adjustment, Forming strength suppression setting, Forming speed setting, Number of forming setting. | |||
| Machine Mass (Weight) |
DBM-700 | 373㎏ | Accessories and wires included | |
| DBM-700T | 241㎏ | Includes accessories (4kg) | ||
| DBM-700S | 118㎏ | Includes accessories (22kg) | ||
*Product specifications and appearance are subject to change without notice for improvement.
Other related equipment
COLLATORS
Suction Collator

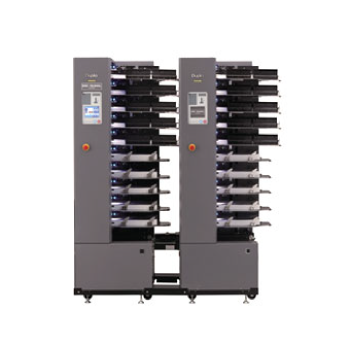

DSC-10/60iL
| The number of bins | Units connectable | Process Speed |
|---|---|---|
| 10 bins/tower | 6 towers | 10,000sets/h |
SHEET FEEDERS
Sheet Feeder

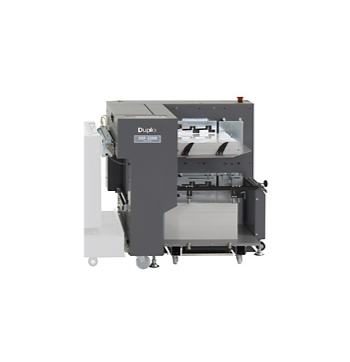

DSF-2200
