Folders|DUPLO FOLDER DF-990

製品

The DF-990 Automatic Paper Folder is the quietest tabletop folding machine in the industry. With a high speed of up to 260 sheets per minute. It is perfect for any office environment.

Paper Size Process Speed
A3~B6 260sheets per minute
  • A3~B6
  • Fold types 8
  • 15 Memory function
  • Process Speed 260sheets per minute
  • Quiet Design
  • LCD Color Touch Panel

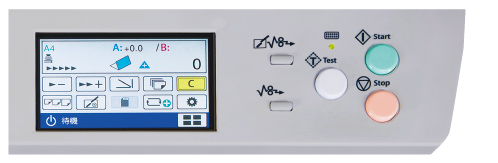

    DF-990 LCD Color Touch Panel
Model/Type Desktop-type DF-990
Regular Paper Size A3 to B6
Range of Paper Size Max.311×457.2mm
Min.:74×105mm
*With some exceptions
Paper Type Fine quality paper / Coated paper
Paper weight 52.3 to 157g/m²
Paper Feed Capacity 500 sheets
*64g/m², Fine quality
Folding Mode Single fold, Double fold, Irregular accordion fold, Letter fold,Accordion fold, Gate fold, Specific cross fold, Other non-standard fold.
Maximum Process Speed 260 sheets per minute
*81.4g/m², Fine quality, A4 single fold
Number of custom folding registration memories 15
Paper Feed method 3-ring friction feed
Paper feed tray movement Manual up-down
Additional functions Separating pressure adjustment, Paper feed pressure adjustment, Folding speed adjustment, Manual adjustment, Test folding, Entire paper length input mode, Folding stopper fixing function, Refold mode function, Processing speed change function, Paper ejection interval (batch) function, Interval settings at the start-up time, Processing speed settings at the start-up time, Paper ejection function, Paper ejectin function inside the folding plate, Buzzer sound settings, Paper stacking detection switching function, LCD display energy-saving setting mode
Error detection functions Paper stack detection, Paper jamming detection, Miss-feed detection, Paper size error, Double-feed detection, Paper size detection
Dimensions In use
 1,046(W)×512(D)×494(H) mm
In storage
 665(W)×512(D)×494(H) mm
Weight 42.0 kg (including accessories)
Options DF Hand Feed KIT

Duplo has a policy of continuous improvement and reserves the right to amend the specifications without prior notice.
