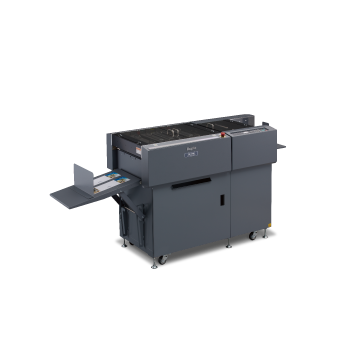

Slitter-Cutter-Creaser|Cutter-Creaser DC-646

製品

DC-646 is available to 6 slits, 30 cuts, 20 creases in one pass solution for digital printing applications. There are three replaceable slots to insert several modules for various applications. The ideal solution is high volume digital print finishing in the commercial environment for business cards, greeting cards, thickets and coupons.

Process Speed
30sheets per minute
  • Paper Size 幅210~370mm 長さ210~670mm
  • Slit Creaser Speed 30sheets per minute
  • CCD Bar-code reader
Model/Type DC-646
Machine Type Slitter/Cutter/Creaser
Paper Size Width
 210mm - 370mm
Length
 210mm - 670mm
Minimum output size Slit width
 48.0mm
Cut length
 50.0mm
Paper Type Non coated, Coated, Laminated
Margin Slit Width 3.2mm - 55.0mm from the paper side edge
Gutter Slit Width 5mm - 15mm
※Gutter strips wider than 15mm are output on the exit tray.
Min Cut Length Lead edge cut
 3m
Gutter cut
 3.0
Trail edge cut
 5.0mm
Paper Weight 110-350gsm
Slit - Cut - Crease Up to 6 slits*, 30 cuts, 20 creases / document
※Max 8 slits by Optional Slitter Module OSM-02
Speed 30sheets/ min (A4SEF, 2cuts, 1 crease)
Input Tray Capacity 100mm
Stacker Capacity 140mm
PC Interface USB 2.0 (A/B 4 pin) (Dulo original software : PC Controller)
Optional Module Rotary Tool Module (RTM-03),Cross Rotary Tool module (CPM-03), Optional Slitter module (OSM-02), Optional PCB Kit (OPK-02)
Power 115VAC, 60Hz, 230VAC, 50/60Hz
Power Consumption 4.0 - 1.9A
Dimension In use
 2,310(W)×1,005(D)×1,110(H)mm
In storage
 1,650(W)×1,005(D)×1,110(H)mm
Weight 275kg

Duplo has a policy of continuous improvement and reserves the right to amend the specifications without prior notice.

Other related equipment

Folders

製品

DUPLO FOLDER

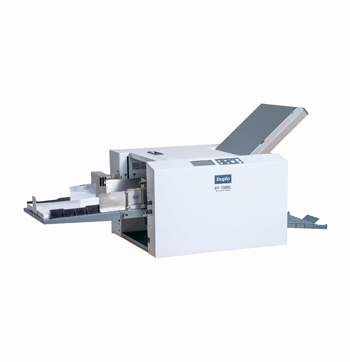

DF-1300L

Paper Size Process Speed
311 x 648mm 310sheets
製品

DUPLO FOLDER

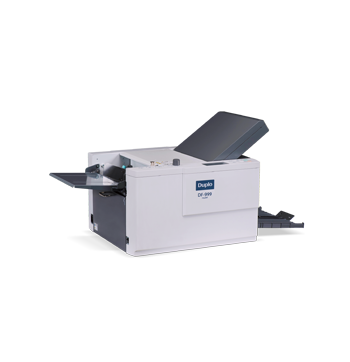

DF-999

Paper Size Process Speed
A3~B6 260sheets per minute
製品

DUPLO FOLDER

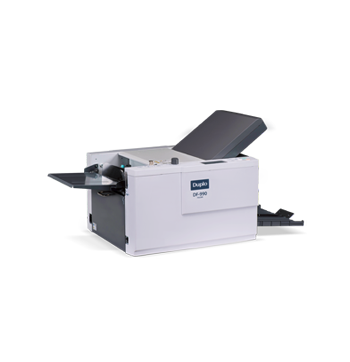

DF-990

Paper Size Process Speed
A3~B6 260sheets per minute
製品

DUPLO FOLDER

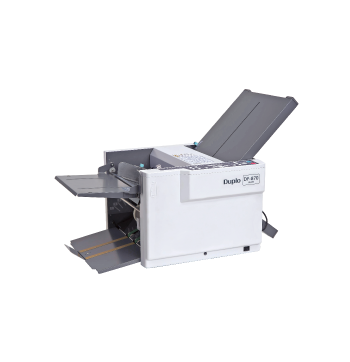

DF-870

Paper Size Process Speed
A3~B6 241sheets per minute
製品

DUPLO FOLDER

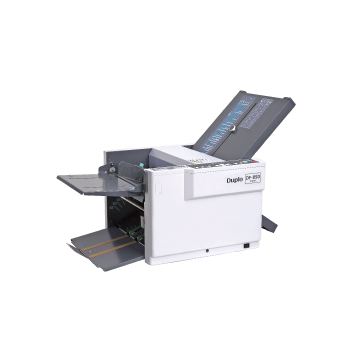

DF-850

Paper Size Process Speed
A3~B6 241sheets per minute

Slitter-Cutter-Creaser

製品

Cutter-Creaser

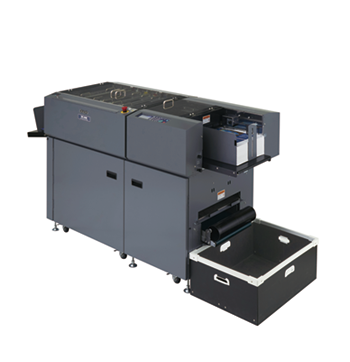

DC-648

Process Speed Optional equipment
40sheets per minute CCD
製品

Cutter-Creaser
DC-618

Process Speed Optional equipment
23sheets per minute CCD
製品

Cutter-Creaser

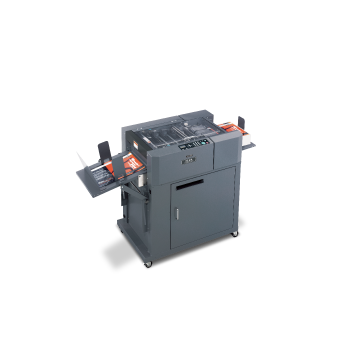

DC-616/DC-616 AP PRO

Process Speed Optional equipment
10sheets per minute CCD
製品

Creaser
DC-516

Process Speed
100 sheets/min (A4 SEF 1 center creaser)
製品

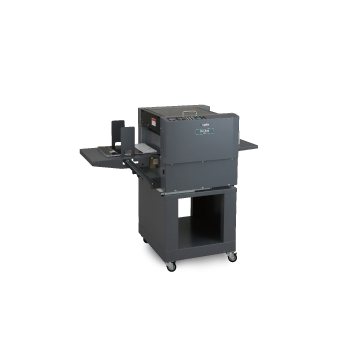

Creaser
DC-446

Process Speed
60 ppm(A4, 1 crease)

Perfect Binder

製品

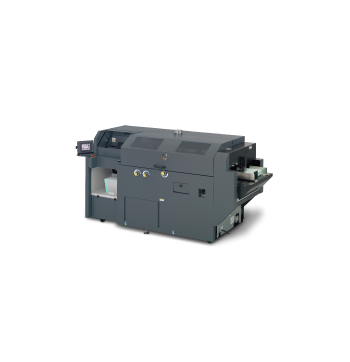

Perfect Binder
