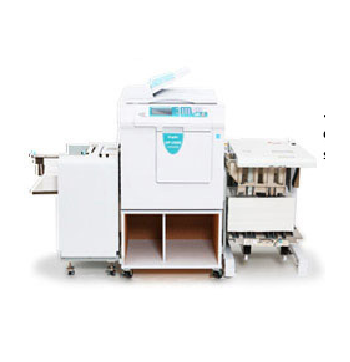

Digital Duplicators｜Duprinter DP-U950
600×600 dpi resolution, up to A3 image area.The combinationn of newly developed master, matching ink, and built-in advanced imaging features products outstanding level of quality prints on a wide range of stock, including paper, card and envelopes etc.
| Paper size | Print head | Print speed |
|---|---|---|
| A3 | 600×600dpi | 150sheets per minute |
| Model | Duprinter DP-U950 |
|---|---|
| Machine type | Floor type Duprinter |
| Master Making Speed | 19 seconds (A4.100%) |
| Resolution | Scan 600dpi×600dpi 600dpi×600dpi |
| Scanning Method | Flat bet scanner |
| Printing Method | Stencil Print |
| Document Type | Sheets, Book (max. 10kg) |
| Document Size | MAX. 297×432mm |
| Paper size | MAX 310x432mm MIN 100x148mm |
| Image area | MAX 290×423mm |
| Feeder / Stacker capacity | 3,500sheets(64gsm), 3,000sheets(75gsm), 2,800sheets(80gsm) |
| Paper weight | 53-210gsm 13lb(Bond) - 110lb(Index) |
| Zoom | 【AB size】100% Preset reduction/enlargement 70, 81, 86, 115, 122, 141% Adjust X:Y Proportions 50～500% Margin adjust 90-99% Zoom 50～500% Auto Zoom 50, 57, 61, 70, 81, 86, 100, 115, 122, 141, 163, 173, 200% 【Inch Size】100% Preset reduction/enlargement 50, 64, 77, 121, 129, 154% Adjust X:Y Proportions 50～500% Margin adjust 90-99% Zoom 50～500% Auto Zoom 50, 60, 64, 70, 77, 78, 91, 100, 121, 129, 137, 141, 154, 200, 212, 275% |
| Image modes | Text,Photo, Text/Photo (2 types), Pencil, Screen (2 types) |
| Print speed | 45 - 130ppm 5 steps +Top Speed 150ppm *Top Speed:150ppm for B4/A4/letter/Legal paper |
| Registration adjustment | Vertical ±15mm Horizontal ±10mm |
| Ink supply method | Fully automatic |
| Master feeding method | Fully automatic |
| Master ejection method | Fully automatic |
| Color Print | By replacing Drum unit |
| Online | USB interface (USB2.0 Full-Speed) Windows 2000 Professional, WindowsXP professional/Home Edition, Windows Vista (32bit/64bit), Mac OSX(10.3/10.4/10.5) IEEE1284 (Compatibility mode, Nibble mode) parallel interface (Optional) Windows98/Me, Windows NT4.0, Windows2000Professional, Windows XP Professional/Home Edition, Windows Vista (32bit/64bit), Windows 7 (32bit/64bit) LAN unit (optional) Windows98/Me, Windows NT4.0, Windows2000Professional, Windows XP Professional/Home Edition, Windows Vista (32bit/64bit), Windows 7 (32bit/64bit), Mac OSX（10.3/10.4/10.5 ） |
| Other function | Ink save mode, Color separation, Multiple exposure, Book shadow erasure, Confidential safeguard, Panel setting memory, Status LED, 90 degree rotation, Optimize print, Automatic pressure control, Intial setting, Master re-make, Document density detection, Feed heavy weight paper, Repeat counter, Fine start, Pre-print, Interval print, Entry of sets & prints, Energy save mode, Automatic power off, Ink replenishing mode, Auto-reset, Online print, Document preview, Minimum print restriction, Edit function, Short-cut setting, Prints per set/prints per document program, LCD reverse display, Clock setting, Buzzer setting, Paper type setting |
| Power source | 【Ratings】 100-240V, 50/60Hz, 3.3-1.5A 【Power consumption】 Printing (130ppm printing) MAX. 330W Master making 176W Standing by 55W Sleeping 16W |
| Dimensions | In use/Folded 1,739（W）×812（D）×1,163（H）mm In use/Folded(with optional ADF attached) 1,739（W）×812（D）×1,305（H）mm |
| Weight | 111kg |
Duplo has a policy of continuous improvement and reserves the right to amend the specifications without prior notice.
