Digital Spot UV Coater | DDC-8000
In-line foil processing (optional) is now possible, expanding the possibilities for accurate digital spot UV printing. With Spot UV printing and foil processing with a three-dimensional effect, you can realize a more luxurious print sheet. In addition, it supports B2 size paper and can propose spot UV printing + foil processing solutions for the packaging industry.
| Paper size | Resolution | Processing speed |
|---|---|---|
| Width 279 to 585 mm Length 279 to 1068mm Standard size B2 SEF, B3 SEF/B3 LEF, A2 SEF, A3 SEF/A3 LEF, DLT SEF/DLT LEF |
600dpi×600dpi | <When printing> [Equivalent to A3SR] 25 sheets / minute [Equivalent to B2] 12 sheets / minute ＜When foil processing＞ [Equivalent to A3SR] 12 sheets / minute [Equivalent to B2] 6 sheets / minute |

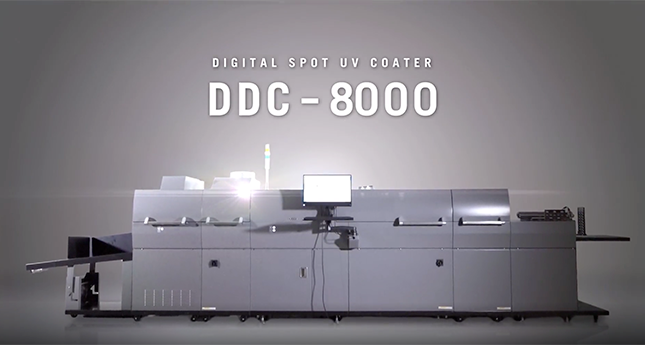

DDC-8000 video
■DDC-8000
| Model | DDC-8000 |
|---|---|
| Paper size | Width 279 to 585 mm Length 279 to 1068mm Standard size B2 SEF, B3 SEF/B3 LEF, A2 SEF, A3 SEF/A3 LEF, DLT SEF/DLT LEF |
| Paper quality | Art paper/coated paper 157～600g/㎡ |
| Paper type | Sheet (paper curling of 2 mm or more including thickness is strictly prohibited) |
| Paper thickness | 0.14㎜～0.8㎜ |
| Processing form | Print: Line-type inkjet Ink curing UV: UV lamp (metal halogen lamp) Printing correction: CCD camera |
| Resolution | 600dpi×600dpi |
| Printing area | 10 mm from each edge When there are margins of paper widths of 558 mm or more, the margin on the reference side is set to 10 mm, and the margin on the anti-reference side is extended. |
| Printable data | PDF: Only one type of the page size supports the multi size PDF. The page number of the multi page is 200 pages or less. If the PDF color setting is created in CMYK, it can be decomposed by CMYK components. If it is created in RGB, it can be supported in only grayscale. (color mode setting)) TIFF: 600 dpi grayscale. |
| Print correction method | Automatic print correction: Automatic correction by reading the registration mark (print length, print width, skew, scaling, twist) |
| Print accuracy | Within ± 0.2 mm (when using the real-time mode) |
| Print thickness | 10-40 μm: Can be set every 5 μm 40-80 μm: Can be set every 10 μm 10 μm to 80 μm depending on the paper quality There are restrictions depending on the user usage environment and media conditions, and not all thicknesses are guaranteed. There is a limit to the processing speed depending on the print thickness. For details, refer to the item of processing speed. |
| Processing speed (Print thickness 40 μm or less) |
<When printing> [Equivalent to A3SR] 25 sheets / minute [Equivalent to B2] 12 sheets / minute ＜When foil processing＞ [Equivalent to A3SR] 12 sheets / minute [Equivalent to B2] 6 sheets / minute |
| Paper feeding method | Belt suction method |
| Paper feeding reference | One-side reference (non-operator's side) |
| Paper feed tray capacity | 200㎜ |
| Rating | Three phase Y220 to 240/380 to 415 (*1) (*2) (*3) Three phase 240 (*1) (*4) Single phase 208 to 240 (*2) (*4) (*1) Skew correction section (*2) UV curing section (*3) For Europe (*4) For North America |
| Power consumption | 3100 (*1) (*3)/4200 (*1) (*4) 7200 (*2) (*3) (*4) (*1) Skew correction section (*2) UV curing section (*3) For Europe (*4) For North America |
| Dimensions | When used 5426 x 1397 x 1980 mm |
| Weight | 1330 kg (For North America) 1328 kg (For Europe) |
| Options | SURFACE TREATMENT UNIT FOR DDC-8000/ SURFACE TREATMENT UNIT COLD FOIL UNIT FOR DDC-8000/ COLD FOIL UNIT |
*Product specifications and appearance are subject to change without notice for improvement.
■SURFACE TREATMENT UNIT FOR DDC-8000
| Model | SURFACE TREATMENT UNIT FOR DDC-8000 |
|---|---|
| terms of use | Exhaust duct air volume: 700 m³ / hour * If the air volume cannot be secured, it is necessary to install an exhaust device. |
| Surface modifiable range | Maximum width: 585 mm Maximum length: 1,068 mm |
| High voltage discharge amount | OFF, 200W-1,000W (in 100W increments, initial value: 400W) |
| Dimensions | 1006 x 1654 x 1400 mm |
| Weight | 409kg (Including accessories) |
| Necessary equipment | Appropriate ozone filter. Recommended ozone concentration less than 0.1ppm |
*Product specifications and appearance are subject to change without notice for improvement.
■COLD FOIL UNIT FOR DDC-8000
| Model | COLD FOIL UNIT FOR DDC-8000 |
|---|---|
| Foil processing range | Maximum width 538mm Left and right margins of 10 mm are required for printing. For a printing width of 50 mm, the foil must be at least 70 mm wide. Maximum length 1048mm For paper whose width is less than 420 mm, the margin at the trailing edge must be 60 mm or more. |
| Paper tube size | Internal diameter 76.2 mm Inner diameter of the paper tube that can be set: 76.2 ± 0.2 mm / 3 ± 0.0078 inch Paper tube thickness: 3 to 15 mm Length 50 to 548 mm* Effective width of the friction shaft to which the paper tube that can be set: 50 to 550 mm * Resin pipes cannot be used |
| Input air pressure | 0.5MPa (manual regulator adjustable range 0.7MPa or less) |
| Dimensions | 741 x 1176 x 1546 mm |
| Weight | 436kg（Including accessories） |
*Product specifications and appearance are subject to change without notice for improvement.
