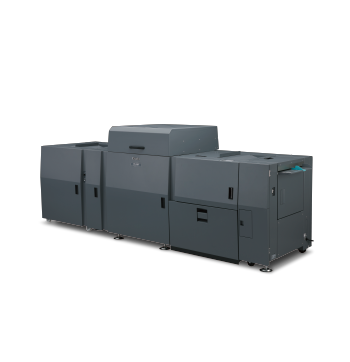

Inkjet Printer|Duplo Inkjet Press DIJ-200

PRODUCTS

Two (or mono) color inkjet press DIJ-200 provides high volume productivity. Simplex speed 200 ppm and duplex speed 82 ppm (164 pages) finishes job quickly. 300 mm high volume stacker provides continuous operation. Air suction feeding from the stacker stabilizes the running without paper damage. Print instructions are managed by server and controlled from web browser, which provides user-friendly operation.

Paper size Print head Printing type
~356×508 600×600dpi Duplex printing
  • Image Area Max322×500mm
  • Paper Size Max356×508
  • 600×600dpi
  • 3,000sheets Loading Capacity
  • Simplex printing Process Speed 200sheets per minute
  • Duplex printing Process Speed 200sheets per minute
  • 2COLOR(*1)

(*1)The use of the option product is necessary

Model Duplo Inkjet Press DIJ-200
Type Floor type
Printing method Line type ink-jet method
Print head Resolution 600×600 dpi, maximum four tones (FM screen: 256 tones)
Effective printing area 【Maximum print width】322mm
【Maximum print length】500mm
Minimum margin Top/bottom 4 mm, right 4 mm, left 4 to 30 mm
Ink Dedicated ink, oil-based paint type
Paper feeding method Belt suction method using fans, Elevator paper feeding method
Separation method Front air separation method using fan motors, separator crimping
Paper feeding tray capacity 300 mm
No. paper feed bins 1 bin (option DIJ-EF : total 3 bins)
Paper size Width
 148 to 356mm
Length
 210 to 508mm
Standard size
 A3SR, A3, A4, A5, B4, B5, legal, letter, double letter
Paper receiving system Straight stack
Paper receiving tray 300mm
Paper quality Fine quality paper
 64~210g/m²
 pressure sensitive paper N40
Paper type Sheet
Maximum processing speed Simplex printing
 200 sheets/min. (200 pages/min.)
Duplex printing
 82 sheets/min. (164 pages/min.)
 *When feeding A4 paper on long edge
Detection function Paper jam , No paper on the paper tray, No ink, Double feed/mis-feed, Cover open, Motor overload, Paper receiving tray full, Paper size, The presence of the print head unit, The presence of the paper receiving tray, Ink color, and the presence of the ink cartridge
Power supply 220 to 240 V, 50/60 Hz, 6.3 A
Current consumption 580 W
Dimensions 2,976(W)×840 (D)×1,130(H) mm
Weight (Mass) 400 kg (including the supplied parts and the second print head unit)

Duplo has a policy of continuous improvement and reserves the right to amend the specifications without prior notice.

Other related equipment

Inkjet Printer

PRODUCTS

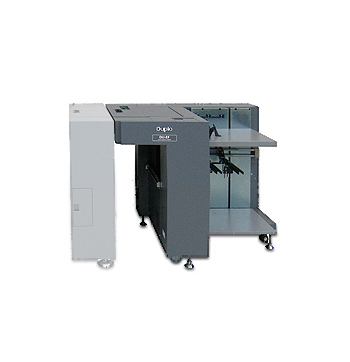

Extension feeder for
DIJ-EF

Connection Number of bins
DIJ-200 Two bins
PRODUCTS

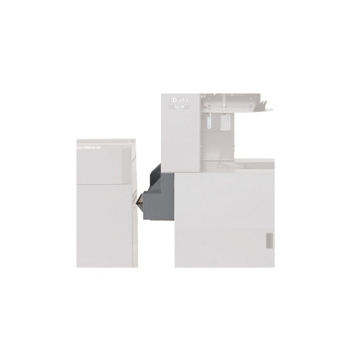

Bypass for Inkjet press
