PRODUCTS TOP

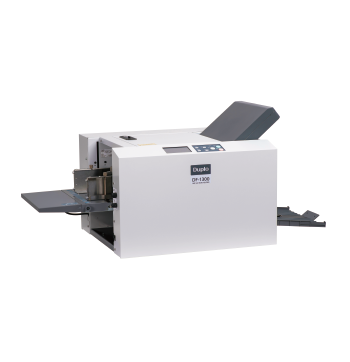

Folders|AIR SUCTION FOLDER DF-1300

製品

The Duplo DF-1300 Air Suction Paper Folder provides the perfect tabletop solution for folding offset and digitally printed documents.With a production speed of up to 310 sheets per minute, the DF-1300 utilizes Duplo's renowned suction feed technology to handle static build-up in digital print applications and also comes equipped with Optical Double Feed Detection to ensure personalized jobs are folded one sheet at a time. Fully automated and quiet in operation, the DF-1300 is ideal for any office environment.

Paper Size Process Speed
A3~B6 310sheets per minute
  • A3SR~B6
  • FULL AUTO
  • Fold types 8
  • Memory function
  • Process Speed 260sheets per minute
  • Quiet Design
Model/Type Desktop-type DF-1300
Feeding Method Fan motor belt suction method
Regular Paper Size A3 to B6
Range of Paper Size Max.311(W) x 457.2(L)mm
Min.120(W) x 182(L)mm
Paper Type Fine quality
 52.3 - 157 gsm
Art/Coated
 73.3 - 157 gsm
Process Speed 310 sheets per minute (A4/lengthways single fold)
Feeding Capacity 50mm
Folding mode Single fold, Double fold, Irregular Accordion fold, Letter fold, Accordion fold, Gate fold, Specific cross fold, Other non-standard fold
Dimensions In use
 1,193(W)×587(D)×541(H) mm
In storage
 806(W)×587(D)×541(H) mm
Weight 67.5kg
Standard Functions Color LCD touch panel, Side Air fan, Double feed detection, Misfeed detection, Paper jam detection, Batch (interval) function

Duplo has a policy of continuous improvement and reserves the right to amend the specifications without prior notice.

Other related equipment

Folders

製品

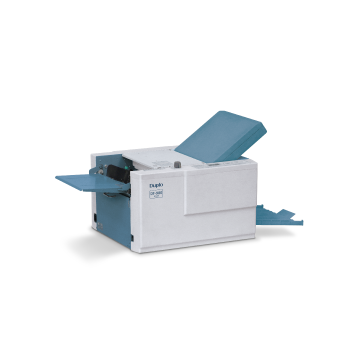

DUPLO FOLDER
DF-980

Paper Size Process Speed
A3~A7 242sheets per minute
製品

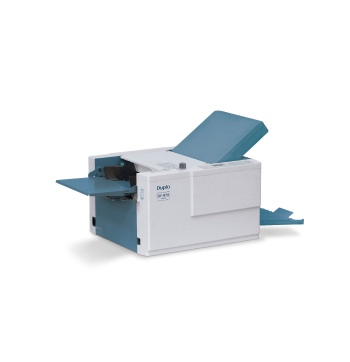

DUPLO FOLDER
DF-970

Paper Size Process Speed
A3~A7 242sheets per minute
製品

DUPLO FOLDER
DF-870

Paper Size Process Speed
A3~B6 125sheets per minute
製品

DUPLO FOLDER
DF-850

Paper Size Process Speed
A3~B6 125sheets per minute

Slitter-Cutter-Creaser

製品

Cutter-Creaser
DC-646

Process Speed Optional equipment
30sheets per minute CCD
製品

Cutter-Creaser
DC-618

Process Speed Optional equipment
23sheets per minute CCD
製品

Cutter-Creaser
DC-616/DC-616 AP PRO

Process Speed Optional equipment
10sheets per minute CCD
製品

Creaser
DC-446

Process Speed
60 ppm(A4, 1 crease)

Perfect Binder

製品

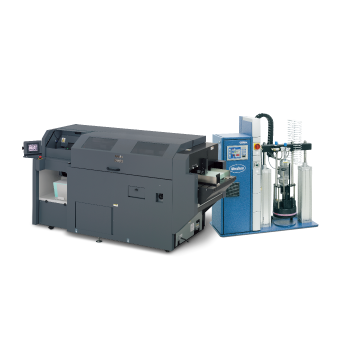

Perfect Binder
