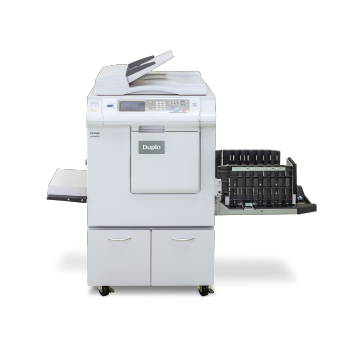

Digital Duplicators|Duprinter|DP-F850

PRODUCTS
ENERGY STAR

Sophisticated high end model of duplicator DP-F850 prints 150 sheets/min with 600x600dpi resolution, up to A3 image area. Full color touch panel make the operation more user-friendly. Indications for master setting and other operations are visually enriched. Power consumption on power save mode is outstanding 0(zero) W to save the useless consumption.

Paper size Print head Print speed
A3 600×600dpi 150sheets per minute
  • Image Area MaxA3
  • Paper Size MaxA3
  • 600×600dpi
  • Book
  • 1500Sheets Loading Capacity
  • Energy-saving mode 0W
  • Manuscript editing
  • Master Making Speed	A418secs
  • Multiple Print
  • Process Speed 150sheets per minute
  • ZOOM50~500%
  • Auto ZOOM
  • Book shadow eraser
  • Shortcut
  • Color LCD touch panel
Model DUPRINTER DP-F850
Type Floor stand model
Master Making Thermal Digital
Resolution Scan
 600dpi×600dpi
Print
 600dpi×600dpi
Document Size MAX.297×432mm
Paper size MAX
 320×450mm
MIN
 100×148mm
Image area 290×423mm
Feeder / Stacker capacity 1,500 sheets (64gsm)
Paper weight 45 - 210gsm
Operation Panel Full color touch panel
Zoom 50~500%
Image modes Text, Photo, Text/Photo (2 types), Pencil, Screen (2 types)
Print speed 45 - 130ppm (5 steps) +Top Speed 150ppm
Method of ink supply and master feeding and ejecting Fully automatic
Color Print By replacing Drum unit
Online Optional USB interface (USB2.0 Full-Speed)
 Windows Vista (32bit/64bit), Windows 7(32bit/64bit), Windows 8(32bit/64bit), Windows 8.1(32bit/64bit)(Desktop application only), Windows 10(32bit/64bit)(Desktop application only), Mac OS X (10.3/10.4/10.5/10.6/10.7) (PowerPC/Intel)
Optional print server FS-100U2
 Windows Vista (32bit/64bit), Windows 7(32bit/64bit), Windows 8(32bit/64bit), Windows 8.1(32bit/64bit)(Desktop application only), Windows 10(32bit/64bit)(Desktop application only), Mac OS X (10.3/10.4/10.5/10.6/10.7) (PowerPC/Intel)
Other function Multiple exposure, Book shadow erasure, Confidential safeguard, Panel setting memory, Status LED, Rotation, Optimize print, Automatic pressure control, Initial setting, Master re-make, Document density detection, Repeat counter, Fine start, Interval print, Entry of sets & prints, Energy save mode, Automatic power off, Auto-reset, Document preview, Edit function, Short-cut setting, Ink save mode
Power source 100-240V, 50/60Hz, 2.4-1.0A
Maximum Printing speed
 MAX. 220W
Sleeping
 MIN. 0W
Dimensions In use
 1,401(W)×688(D)×1,080(H)mm
Folded
 770(W)×688(D)×1,080(H)mm
Weight 102kg

Duplo has a policy of continuous improvement and reserves the right to amend the specifications without prior notice.
