Lift-up unit | LUR

Products

The LUR is a connecting device for DE-10/60 and DBM-400STR high-speed stacker, which transfer and lifts set up to the DBM-400STR input height. Any mis-collated sets are delivered to the integrated reject tray, without stopping the machine in order to minimize downtime.

Connecting device Additional function
DBM-400STR Reject function
Model/Type Lift-up unit LUR
Paper size Length
 139 to 500 mm
Width
 210 to 350 mm
Paper Weight E Fine quality
 64 to 125gsm
E Art/Coated
 104.7 to 157gsm
Max. Transporting sheets 60 sheets(81.4gsm)
Reject function Yes
Dimensions 690(W)×625(D)×725(H)mm
Weight 45kg

Duplo has a policy of continuous improvement and reserves the right to amend the specifications without prior notice.

Other related equipment

COLLATORS

Products

Suction Collator
DSC-10/60iL

The number of bins Units connectable Process Speed
10 bins/tower 6 towers 10,000sets/h
Products

Suction Collator

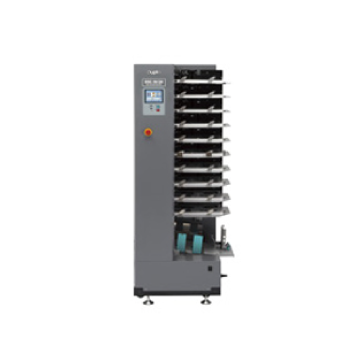

DSC-10/20

The number of bins Units connectable Process Speed
10 bins/tower 2 towers 7,200sets/h
Products

Collator
DFC-122

The number of bins Process Speed
12 bins/tower 6,000sets/h
Products

Collator
DFC-102

The number of bins Process Speed
10 bins/tower 7,800sets/h

SHEET FEEDERS

Products

Sheet Feeder
DSF-6000

Paper size Paper loading volume Process Speed
B6~A3SR 610mm 600sheets/min
Products

Sheet Feeder
DSF-2200

Paper size Paper loading volume Process Speed
A5~A3SR Upper tray:65mm
Lower tray:200mm
200sheets/min

BOOKLET MAKERS

Products

Saddle Stitcher
DBMS

Paper size Type of stitching Process Speed
A4LS Saddle stitch 5,050sets/h
Products

Booklet Maker

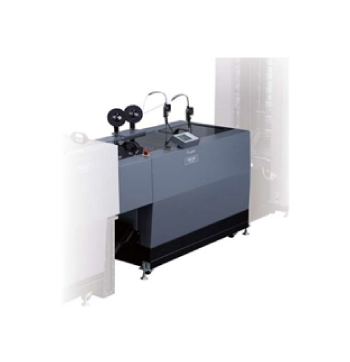

DBM-600

Paper size Type of stitching Process Speed
A4LS Saddle stitch 4,600sets/h
Products

Booklet Maker
DBM-350

Paper size Type of stitching Process Speed
A5~A3SR Saddle stitch 3,000sets/h
Products

Booklet Maker
DBM-150

Paper size Type of stitching Process Speed
A5~A3SR Saddle stitch 2,400sets/h
Products

Stitcher

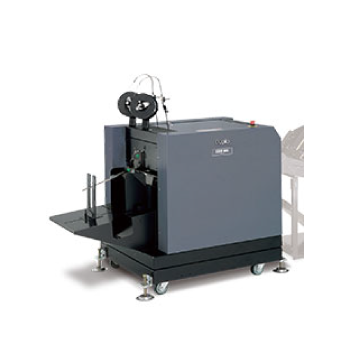

DBM-60S

Stitcher Heads Process Speed
2 positions 4,500sets/h

TRIMMER

Products

Trimmer
DKTS-200

Trimming capacity Process Speed
60sheets 5,050sets/h
Products

Trimmer
DBM-600T

Trimming capacity Process Speed
50sheets 4,600sets/h
Products

Trimmer
DBM-350T

Trimming capacity Process Speed
20sheets 3,000sets/h
Products

Trimmer
DBM-150T

Process Speed
2,400sets/h

SQUARE SPINE

Products

Square Spine
DSS-350

Book size Process Speed
A5~A3SR 2,600books/h

STACKER and OTHERS

Products

High Speed Creaser
DBM-HSC

Process Speed
285sheets/h
Products

Stacker
DCR-ST

Paper size Process Speed
A5~A3SR 4,000sets/h
Products

Stacker
DBM-400STR

Stack Capacity Process Speed
430mm 9,000sets/h
Products

Stacker

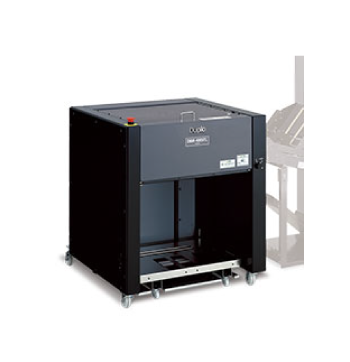

DBM-400STL
