Square Spine | DSS-350

Products

The DSS-350 is designed to give a perfect bound-book finish to stitched booklet with very less damage to the spine. The square finishing is getting popular especially in digital point market. The flat appearance of booklets provides many benefits, not only does it allow for easy storage, but it also provides the printer with the option to print on the spine.

Book size Process Speed
A5~A3SR 2,600books/h
  • A5~A3SR
  • Prosecc speed 2,600books/h
Model/Type Square Spine DSS-350
Machine type Floor type square spine module
Paper type Saddle stitch + folded (Loop stitch not available)
Paper size Min. 85(W) x 105(L)mm
Max. 230(W) x 320(L)mm
Paper quality Fine qulaity, Art/coated
Paper weight Fine quality
 64 to 127.9gsm
Art/Coated
 104.7 to 127.9gsm
Cover
 within 300gsm
Thickness applicable to square spine shaping process Within 4.2mm
Processing speed 2,600 booklets/h (Within 10 sheets of fine quality 81.4gsm for smaller than A5 size booklet)
Additional functions Hand feed
Power supply AC 100 -240V 50/60Hz
Power consumption 1.8A - 0.8A
Dimensions 626(W)×662(D)×817(H)mm
Weight 141kg

Duplo has a policy of continuous improvement and reserves the right to amend the specifications without prior notice.

Other related equipment

COLLATORS

Products

Suction Collator
DSC-10/60iL

The number of bins Units connectable Process Speed
10 bins/tower 6 towers 10,000sets/h
Products

Collator
DFC-122

The number of bins Process Speed
12 bins/tower 6,000sets/h
Products

Collator
DFC-102

The number of bins Process Speed
10 bins/tower 7,800sets/h

SHEET FEEDERS

Products

Sheet Feeder
DSF-6000

Paper size Paper loading volume Process Speed
B6~A3SR 610mm 600sheets/min
Products

Sheet Feeder
DSF-2200

Paper size Paper loading volume Process Speed
A5~A3SR Upper tray:65mm
Lower tray:200mm
200sheets/min

BOOKLET MAKERS

Products

Saddle Stitcher
DBMS

Paper size Type of stitching Process Speed
A4LS Saddle stitch 5,050sets/h
Products

Booklet Maker
DBM-600

Paper size Type of stitching Process Speed
A4LS Saddle stitch 4,600sets/h
Products

Booklet Maker
DBM-350

Paper size Type of stitching Process Speed
A5~A3SR Saddle stitch 3,000sets/h
Products

Booklet Maker
DBM-150

Paper size Type of stitching Process Speed
A5~A3SR Saddle stitch 2,400sets/h

TRIMMER

Products

Trimmer
DKTS-200

Trimming capacity Process Speed
60sheets 5,050sets/h
Products

Trimmer

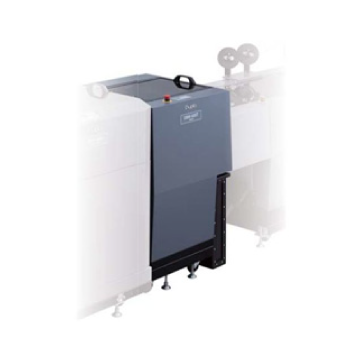

DBM-600T
