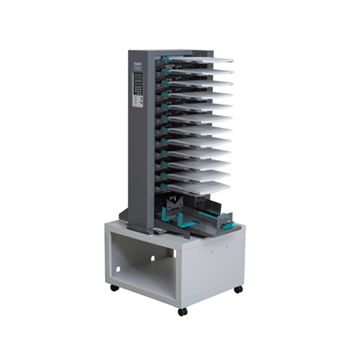

Collator | DFC-122

Products

DFC-122 are high speed,easy to use friction collators, with reliable feeding and accurate stacking. Working standalone or as part of a collating/booklet making system with the DBM-150 booklet maker,the DFC-122 offers a cost effective solution for finishing needs.

The number of bins Process Speed
12 bins/tower 6,000sets/h
  • Paper SizeA5~A3SR
  • Bin capacity 28mm
  • Process speed 100sets/min
Model/Type Collator DFC-122
Model Type Friction feed vertical collator
No. of bins 12bins
Paper Size MAX.A3SR (320 x 450 mm)
MIN.A5 (140 x 160 mm)
※148 mm width available by 148 MM KIT(option)
Paper Type Medium quality paper, Fine quality paper (52.3 to 128 gsm)
Paper feed bin capacity 28 mm (Fine quality paper 64gsm, 350 sheets)
Maximum Process Speed 100 sets/min(A4 short edge feed)
Paper Stack Straight, Offest
Paper Stack Capacity Max 80 mm (The height of full detection sensor is 65 mm)
Counter 4-digi counter (count up/count down)
Paper feed bin detection Preset function memorizes bins to be used
Paper feed error detection Empty feed, double feed, paper jam
Other Functions Counting function, no paper detection, conveyance cover open/close detection, paper receiving table full, downstream unit error detection, paper set jam
Power Supply AC 100 - 240V, 50/60 Hz
Power consumption 1.2 - 0.8 A 120W
Dimensions 820(W)× 618(D)× 1,144(H)mm
Weight 74.2kg
Option DFC cabinet, 148 MM KIT, Delivery unit

Duplo has a policy of continuous improvement and reserves the right to amend the specifications without prior notice.
